Crude Oil Moisture Analyzer Plug-In
Moisture in Oil Analyser
The essential plug-in moisture analyser for crude oil utilizes the detective technology of electromagnetic phase shift to measure the dielectric constant of crude oil, then calculate moisture content of crude oil according to the value of the overall dielectric constant.
The above technology is adopted by foreign companies of petroleum instrument in general and is regarded as a reliable and accurate sophisticated method of measurement. It is equipped with professional integrated chip as the core of measurement unit, which features compact size, wide rangeability (0-100%), high accuracy, reliability and simple installation.
Direction and Size of Installation
Vertical Installation
Vertical installation is beneficial to ensure adequate liquid in pipelines and intensive mixing of water and oil, contributing to the accuracy of measurement.
Diagonal Installation
Diagonal installation is simpler than vertical installation while keeping sufficient contact with crude oil to be measured, improving its accuracy greatly.
Product Features
1. Minimal maintenance for simple structure;
2. Anti-corrosive and oil-immune coating on surface;
3. Built-in temperature sensor for calibration via temperature compensation;
4. Anti-corrosive 304 stainless steel probe & anti-stick coating on surface;
5. Smart communication & remote commissioning;
6. On-site display of readings and remote transmission;
7. Prompt sample analysing;
8. Environmental and energy saving.
9. Support RS485 protocol;
10. Measure both mixture of "water in oil" and "oil in water".
Basic Structure and Working Principle of Probe
The sensor is developed with high-frequency electromagnetic resonant cavity, which features centered energy of electromagnetic wave and reliable signals. It's independent of paraffin precipitation, as well as "water-in-oil" and "oil-in-water". It adopts high-frequency narrowband 1GHz stimulus signals, in which degree of water mineralization has lower effects on results of detection.
Structure of Resonant Cavity
Industrial Applications

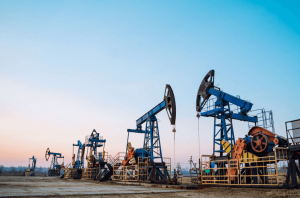

Well-site Oil Drilling
Pipelines of Crude Oil Transportation
Moisture Analyzer for Chemical Fluids
